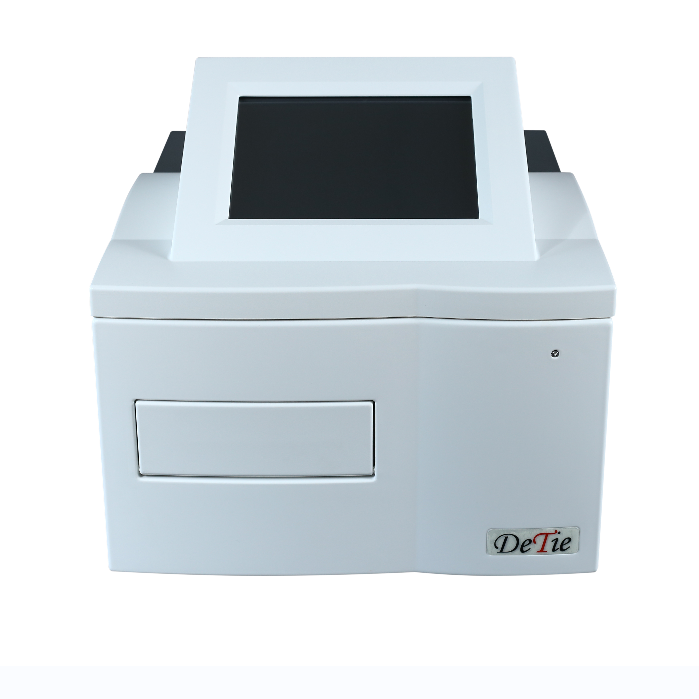

HBS-3096A Veterinary drug residue detector

8 inch color LCDdisplay,touch screen operation.

Visualization of panel and visualization of panel data.

Full closed design of optical path system and long term maintenance free.

Automatic switch door,automatic sampling test,no manual opening.

Center location,accurate data,good stability and good repeatability.

The filter wheel can carry 15 filters and replace them outside the instrument.

End point method,kinetic method,inhibition rate,single/dual wavelength measurement.

Wide voltage design and global power supply.

The veterinary drug residue detector can quickly analyze antibiotic residues, hormone residues and animal diseases in meat products. It is applicable to food and drug regulatory departments, industrial and commercial administrative departments, animal husbandry and veterinary, animal health, agriculture and forestry and other government regulatory institutions, as well as supermarkets, agricultural product markets, livestock and poultry breeding and slaughtering enterprises.

Main Parameters

Lamp：DC12V 22W Tungsten halogen lamp

Optical path:8 channel vertical light path system

Wavelength range：400-1000nm(Selection:340-1100nm)

Filter:Default configuration 405、450、492、630nm, Can be installed up to 15 filters.

Reading range:0-4.000Abs

Linear range:0-3.000Abs

Resolution: 0.001Abs

Accuracy:≤±0.01Abs

Stability:≤±0.003Abs

Repeatability:≤0.3%

Incubation function:room temperature+4℃~50℃，accuracy 37℃±0.5℃（Selection）

Vibration plate :Three kinds of linear vibration plate function, Adjustable 0-255 seconds

Display: 8 inch color LCD screen, display the entire board information, touch screen operation.

Software: Professional software, Can store 200 groups  program, 100000 sample results,More than10 kinds of curve fitting equation.

Power input:AC100-240V  50-60Hz

Weight:11Kg

Size:433mm(L)*320mm(W)*308mm(H)
